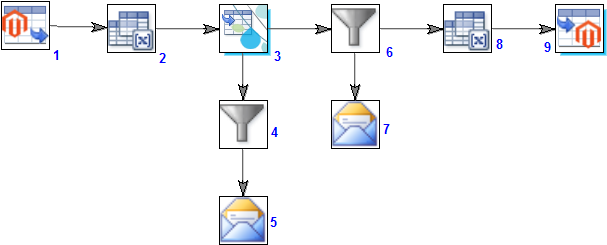

Appendix 2 – IMan Jobs

Download Orders and Update Magento

1. Magento Reader – Pulls new orders from Magento.
2. Map Transform – Adds Fields

1. CustomerAccountSet. Required for Order import.
2. OrderNumber. For capturing write-back data for generated accounting system order number.
3. WarningMessage. For capturing write-back data for any warnings from import.
4. ErrorMessage. For capturing any write-back data for any errors from import.

3. Sage 300 Connector – Attempts an Order Import into the accounting system.
4. Filter – Filter out any orders which incurred an error.
5. Email Task – Compose email for orders which did not import correctly due to an error.
6. Filter – Filter out any orders which were successfully imported.
7. Email Task – Compose email for orders which were successfully imported.
8. Map Transform – Add field for new Order Status in Magento for downloaded orders.
9. Magento Connector – Update Order Status in Magento.
